Opening the problem — why 20W isn’t just a number
Engineers—especially the ones who push chips, lenses, and plastics to their limits—know that “20W” can mean very different things depending on pulse structure, repetition rate, and delivery optics. The real puzzle is balancing pulse width and peak power to hit process windows without inviting thermal damage or nonlinear collapse. This is especially true if your process uses femtosecond lasers, where ultrashort pulses change the rules of engagement for material interaction. The rest of this piece follows a problem-driven framework: identify the typical failure modes when specifying a 20W fiber module, then show how to pick parameters and verify vendor claims so your production line behaves like it’s supposed to.
Define the engineering problem: what you’re optimizing and why it matters
Start by answering two practical questions: what material and process are you targeting, and what’s the acceptable footprint of heat-affected zones? Pulse width controls the interaction regime—shorter pulses (tens to hundreds of femtoseconds) tend to favor a “cold” ablation with minimal melting, while longer pulses (picoseconds to nanoseconds) shift energy into thermal diffusion. Peak power dictates nonlinear effects and multiphoton absorption thresholds. Combine those with repetition rate and beam quality (M2), and you’ve got the knobs that control throughput, edge quality, and yield.
Translate process goals into laser specs
Map desired outcomes to measurable specs. If you need clean micro-machining of glass or polymer without thermal cracking, target sub-picosecond pulse width and moderate peak power per pulse to avoid self-focusing. For high-throughput surface texturing, slightly longer pulses at higher repetition rates may be acceptable if your cooling handles average power. Define acceptable ranges for: pulse energy, repetition rate, beam quality, and temporal chirp. These are the contract line items you’ll use to compare modules.
Common failure modes and how to detect them
Vendors often promise “20W average power” without clarifying how it’s delivered. That’s where problems start: excessive peak power can trigger nonlinear effects in fiber delivery; insufficient pulse energy at the process repetition rate can ruin throughput. Expect to validate:
- Actual pulse width after the delivery optics (use an autocorrelator or cross-correlator).
- Pulse energy versus repetition rate (energy = average power / repetition rate).
- Beam quality and focusability (M2 measurement).
Also watch for operating temperature drift and slope efficiency—both affect long runs. If the part counts jump after a few hours, it’s often a thermal or alignment creep issue rather than a mysterious material property.
Practical trade-offs: pulse width vs. peak power
Here’s the meat: shortening pulse width for the same pulse energy increases peak power, which can be great for nonlinear machining but also raises the risk of self-phase modulation or filamentation in fiber delivery. Conversely, stretching pulses lowers peak power and reduces nonlinear risk, but may reintroduce thermal effects at the workpiece. The right compromise depends on your material’s nonlinear index, thickness, and tolerable HAZ. For brittle dielectrics like glass, prioritize shorter pulses and controlled pulse energy; for metals where melt removal is acceptable, longer pulses at higher average power sometimes beat ultrashort approaches for throughput.
Spec checklist before you sign a supplier contract
Don’t buy on headline numbers. Ask for these documented deliverables:
- Average power stability (over 8 hours, ±% spec).
- Pulse width measured at the output (autocorrelation trace).
- Pulse energy versus repetition rate curve.
- Beam quality (M2) and pointing stability.
- Delivery fiber specs if using fiber-coupled heads (core size, NA, damage threshold).
Insist on performance verification with your process material or a close surrogate. Suppliers will show you datasheets—make them show you the instrument traces too.
Real-world anchors and vendor selection

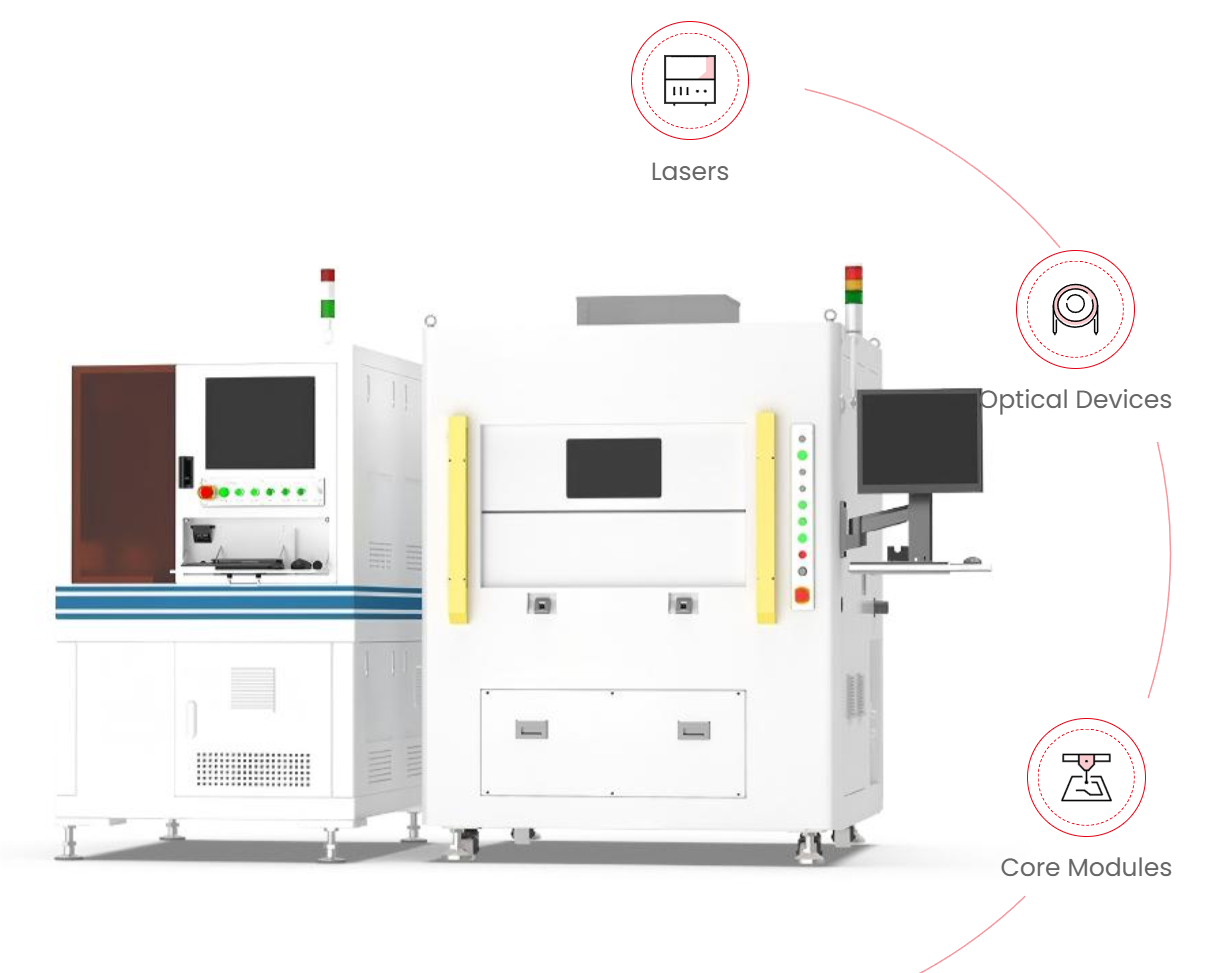

Look to established use cases: femtosecond systems have been adopted for ophthalmic surgery (modern LASIK procedures), semiconductor scribing, and precision micromachining in smartphone display lines—proof that ultrafast pulses can meet tight tolerances in production. When evaluating vendors, consider whether they provide turnkey femtosecond laser systems with integration support, or merely standalone modules. The former reduces integration risk; the latter may be cheaper but requires more in-house optics and control engineering.
Common integration mistakes — and quick fixes
Teams often overlook these:
- Assuming fiber delivery tolerances rather than specifying them—ask for core diameter, NA, and damage threshold.
- Neglecting pulse stretching/compression in your optical chain—dispersion adds up fast.
- Skipping on process-level acceptance tests with real parts.
Quick fixes: add dispersion-compensating optics if pulses broaden; drop repetition rate to boost pulse energy temporarily for setup; and automate first-article testing so regression doesn’t creep in. — It’s worth saying again: measured traces beat spec sheets every time.
Bench validation protocol (short and usable)
Run these three checks before field deployment: (1) measure autocorrelation at the delivery point to confirm pulse width; (2) verify pulse energy vs. repetition rate at nominal power; (3) run a 4–8 hour stability test while logging average power and beam pointing. If any parameter wanders beyond spec, investigate thermal management or internal amplifier gain flattening first.
Advisory: three golden rules for choosing and specifying a 20W module
1) Demand end-to-end measurements: require pulse width, pulse energy, and beam quality at the point of use, not just at the module output. 2) Match peak power to material thresholds: calculate expected peak intensity in focus and compare to nonlinear and damage thresholds for your workpiece. 3) Build for integration: choose modules from vendors who support fiber delivery, dispersion control, and long-term stability testing—those reduce hidden integration costs.
Expect measurable improvement in yield and process repeatability when you follow these rules; that’s the value engineers can measure on the production floor. For practical, reliable ultrafast performance in manufacturing environments, proven integration and system-level support are the difference between a lab curiosity and a production tool—JPT. —
