Introduction: A Morning Queue, Cold Air, and a Quiet Race for Kilowatts
A frost-laced dawn, coffee steam, and a slow crawl of cars toward fast chargers. Each unit hides a power module for EV charger at its core. The cabinets hum like a kitchen line in the dinner rush, and utilization climbs in spikes that can triple within an hour. Yet uptime targets push past 99%, and grid codes tighten while sites add more ports in less space. So here’s the practical question: which architecture keeps power clean, cooling calm, and service visits rare—without bloating cost or complexity? (Because nobody budgets for surprise truck rolls.) Let’s set the table with what really matters out there—reliability, density, and predictable performance under stress—and move to the meat of the design choice.
Deeper Layer: The Quiet Tradeoffs in One-Way Power Paths
What fails first?

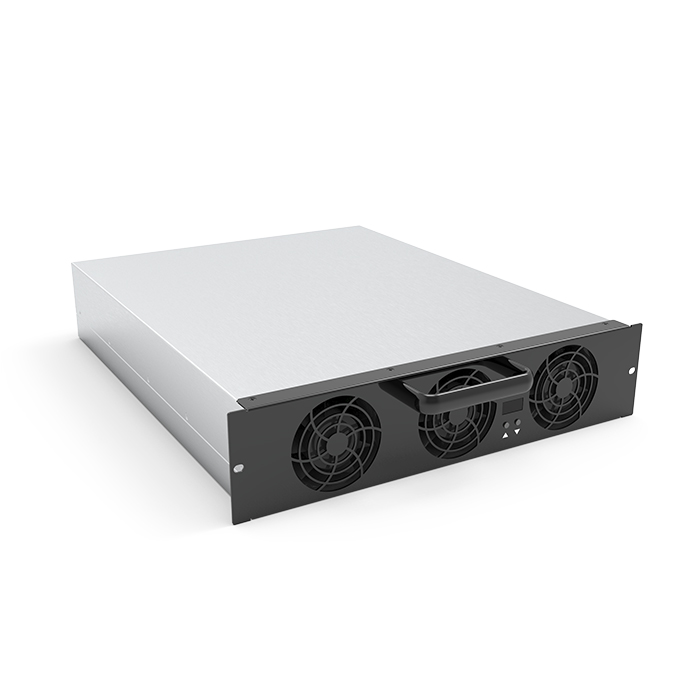

Let’s be clear about the workhorse here: the unidirectional charging module is built for push, not pull. That simplifies the DC bus and trims the dance between rectification, isolation, and control. Traditional “do-it-all” power converters stack features for every edge case, but the extra headroom invites more heat, more harmonics, and more points of failure. In field logs, the pattern holds: thermal derating appears first, then intermittent EMI trips, then slow drift in sensor calibration—often after months of peak-season duty. Look, it’s simpler than you think: when energy only moves one way, you can harden the galvanic isolation stage, pick a tighter interleaved topology, and tune the soft-switching window with fewer compromises. That means cooler cores, quieter filters, and cleaner current delivered to the stack.
Hidden pain points are human, too. Service teams juggle firmware that spans multiple boards, PFC front-ends that hiss at grid ripple, and enclosure temps that run hotter near the midday sun—funny how shadow lines on the site map never line up with reality. A unidirectional path narrows the controls workload. It reduces CAN bus chatter and eases fault classification. Less oscillation, fewer nuisance alarms. And yes, you give up bidirectional tricks. But most sites do not need vehicle-to-grid today—what they need is uptime, safe margins, and predictable OPEX. Counterintuitive? Maybe— and yes, that surprised me too.
Comparative Lens: Principles That Make the Next Wave Practical
What’s Next
New technology principles are tilting the table in favor of simpler, stronger modules. Silicon carbide (SiC MOSFET) devices lower switching losses and let you shrink magnetics without starving thermal headroom. Digital control loops now track transient spikes at millisecond scale, so the module can shape current and hold the DC bus steady under abrupt load steps. Pair that with smarter EMI filter design and you’re slicing both weight and acoustic noise. In practice, a unidirectional stack allocates its silicon budget to what actually runs all day: clean isolation, robust current sharing, and stable protection curves. Documentation links help—but the real proof is in field resilience (see specs here ).
From site operators, the story is consistent. Where modules focus on one-way power, cabinets fit more kW per rack unit, airflow stays smoother, and the maintenance playbook shrinks. Compare that with bidirectional designs: higher part count, tighter thermal windows, more tuning to keep harmonic distortion within local rules. The details matter—busbar geometry, gate timing, even gasket choice for airflow paths. Yet the outcome feels plain. Fewer tradeoffs, fewer surprises, better mean time between failures. That makes room for better forecasting at the edge computing nodes and for lighter touch energy management—funny how that works, right?
Closing Guidance: Choosing Smart, Measuring What Matters
Let’s turn lessons into action. When you evaluate options, use three simple metrics that cut through the noise. First, thermal stability under worst-case duty: ask for data on continuous power at elevated ambient and how quickly thermal derating begins. Second, noise and compliance margin: verify conducted and radiated EMI headroom at full load, including the performance of the EMI filter across grid conditions. Third, service predictability: look at fault taxonomy, average time to clear alarms, and the diagnostic depth on the control interface—because a clean CAN bus and clear logs lower lifetime cost. These checks expose the real difference between “can do everything” and “does the daily work without drama.” In the end, one-way power paths, robust isolation, and right-sized control logic build a charger that tastes like a dish with fewer ingredients and better heat control. And if you want a grounded reference point as you compare vendors and architectures, start with the data sheets and field records from winline charger.
